METAL CHIPS

Smart solutions for transport and processing of metal chips

POTENTIAL CUSTOMERS

  • Machining company
  • Recycler
  • Foundry

MATERIALS, TYPES OF METAL CHIPS

  • Aluminium
  • Brass
  • Iron
  • Steel
  • Bronze
  • Titanium

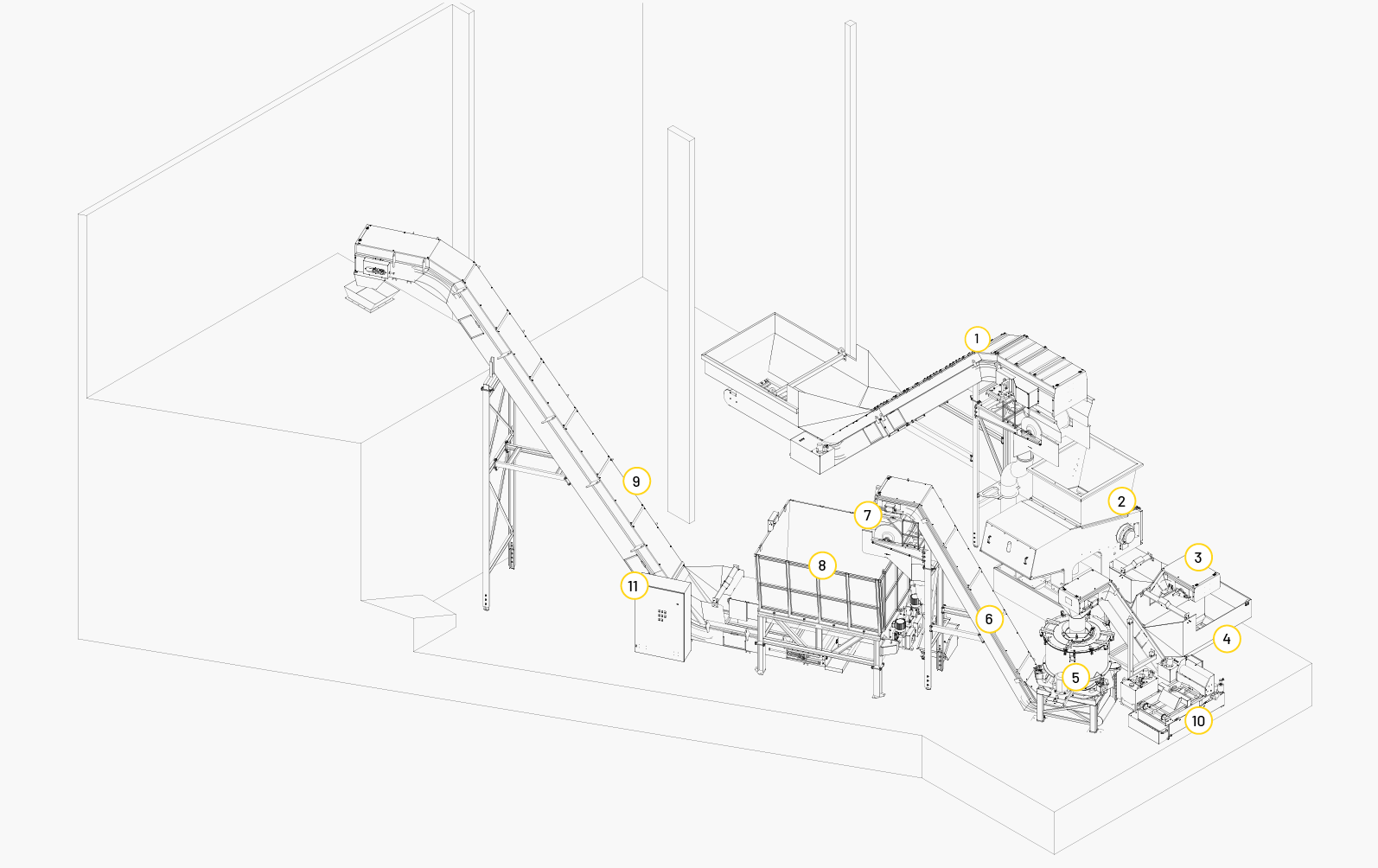

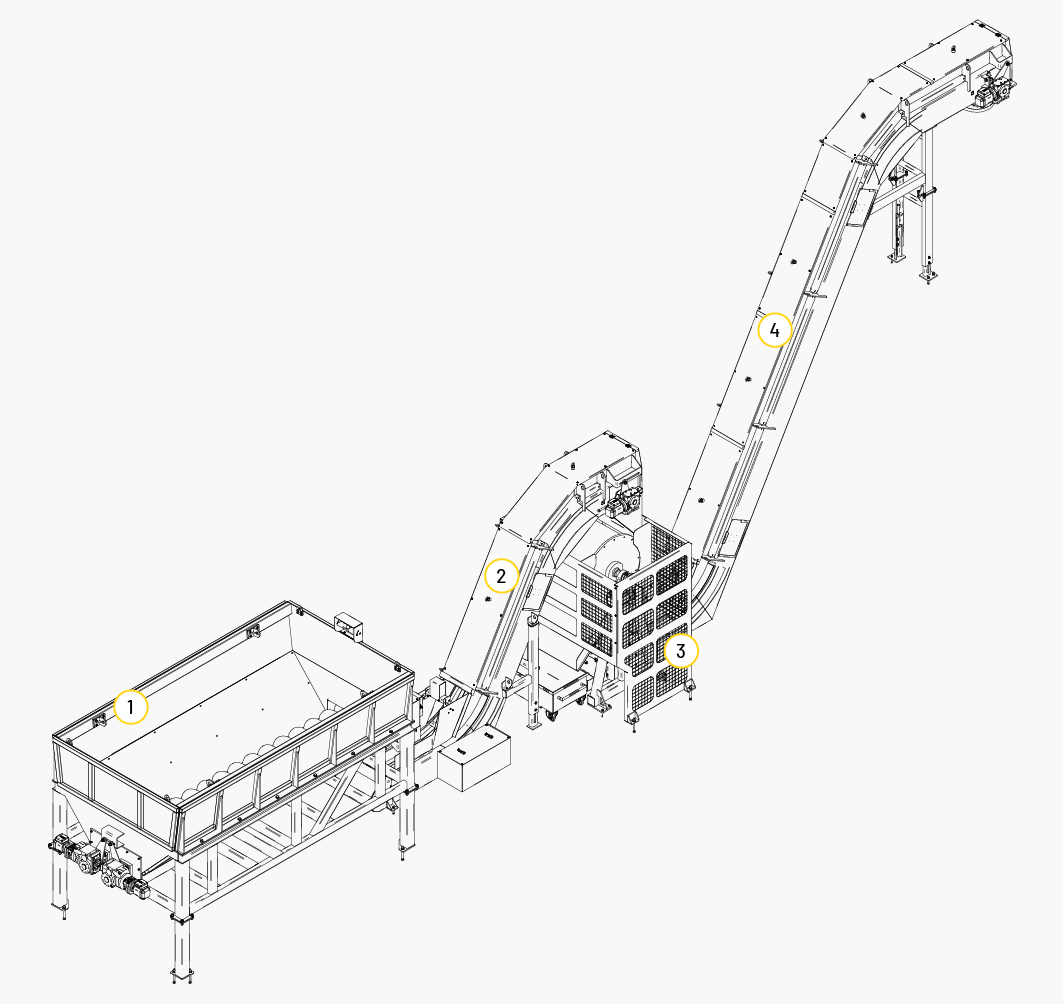

PROJECTS

EQUIPMENT

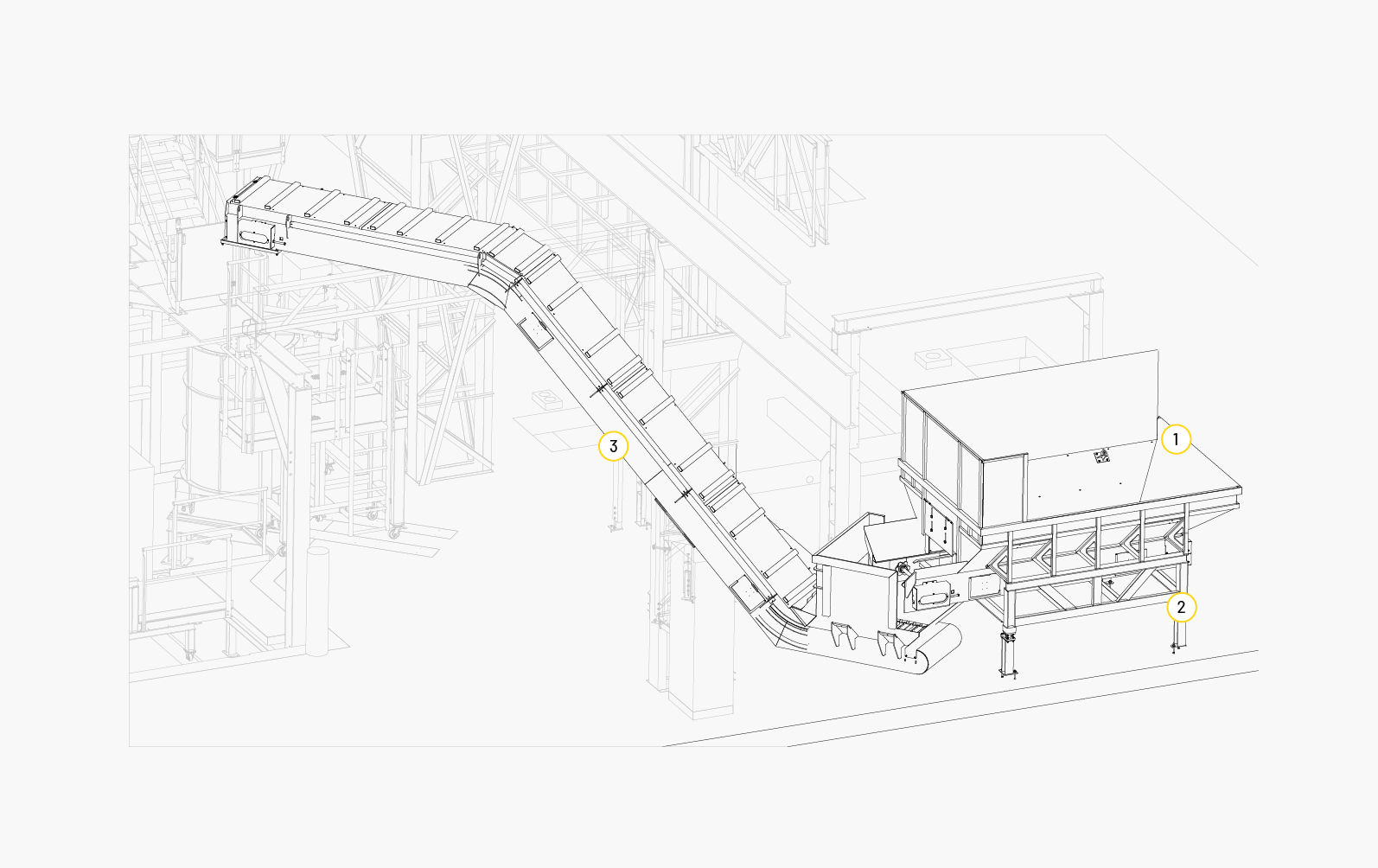

FEED HOPPERS

These depositing systems are designed for storing the metal chips and at the same time facilitating their movement towards the conveyor.

SPINDLE HOPPER

Allows storage of a large volume of material and its movement towards the next process.

STORAGE HOPPER WITH WEIGHING SYSTEM

Allows storage and movement of the material, according to the infeed requirement of the next process.

CRUSHERS

The crushing machines are used for crushing long metal chips or those in the form of skeins, with the function of reducing their volume and preparing the material for subsequent centrifuging and briquette making, where applicable.

VERTICAL AXIS

It is applied in installations for collecting complete plants or high productions of metal chips.

    VERTICAL METAL CHIP CRUSHERS
    Crushing capacity (Kg/h) Power (Kw) Height (mm) Width (mm)
    C-500-TRIT 400-1200 7,5 2290 1725

    HORIZONTAL AXIS

    Applied to cases where the crushing is to take place at the output from the machine.

      HORIZONTAL METAL CHIP CRUSHERS
      Crushing capacity (Kg/h) Power (Kw) Height (mm) Width (mm)
      C-300-1H-TRIT 200-300 2,2-4 725 855
      C-500-1H-TRIT 300-400 2,2-4 925 855

      CENTRIFUGES

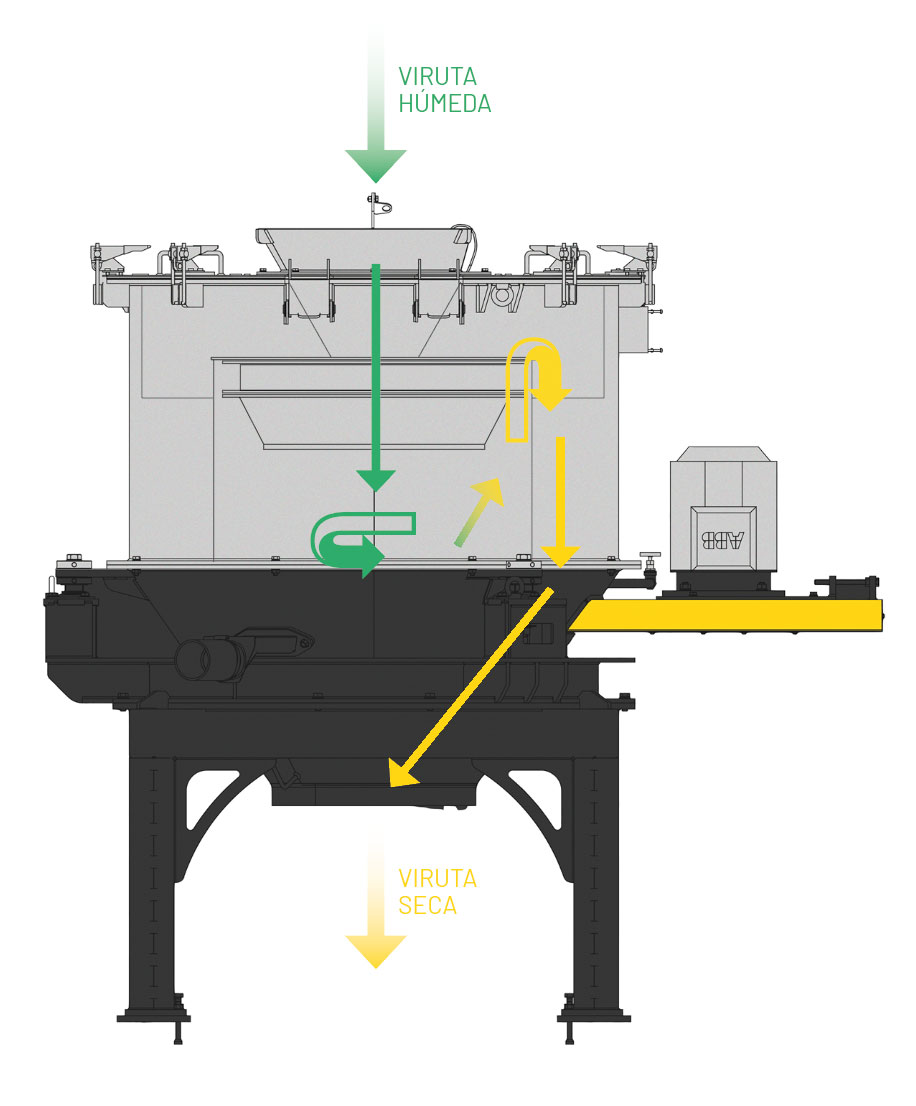

      For separation of the coolant that has adhered to the metal chips from machining or crushing processes. After the centrifuging process a humidity level of less than 3% is achieved and several advantages are obtained, both financial and environmental:

      • A metal chip with greater value either for subsequent sale or melting.
      • Recovery of coolants used in manufacturing for subsequent reuse.
      • Conversion of hazardous into inert waste.
      • Efficiency in subsequent magnetic separation of ferrous and non-ferrous materials.
      METAL CHIP CENTRIFUGES
      A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Production (kg/h) Power (kw)
      C-400-CCC 810 1360 1050 1500 800 700 100-600 2,2
      C-500-CCC (hydraulic system) 980 1780 1260 1970 1035 935 600-1500 5,5
      C-650-CCC 1200 2080 1650 2000 1195 805 1500-4000 5,5

      FILTERS

      GRAVITY FILTERS

      Cometel filtering equipment is used for filtering and recovery of cutting fluids. The liquid is taken to a diffuser where it is distributed over a filtering fabric that retains the particles contained in the fluid.

      SELF-CLEANING TANK WITH DREDGER

      Located next to the centrifuge, its function is to drag the fine particles that are dissolved in the liquid coming from the conveyors and the centrifuging process. The dredger pours the sludge stored on the infeed conveyor into the centrifuge, starting the centrifuging process again.

      SEPARATING EQUIPMENT

      VIBRATING SCREEN

      The vibrating screen is used for the classification and granulometric separation of waste.

      MAGNETIC DRUM

      It receives the material from a conveyor belt and through its magnetic field separates the ferrous material from the rest of the materials.

      OVERBAND

      When the load passes below the overband, the ferritic particles are attracted by their permanent magnets, thus producing a separation of said particles from the rest of the waste.

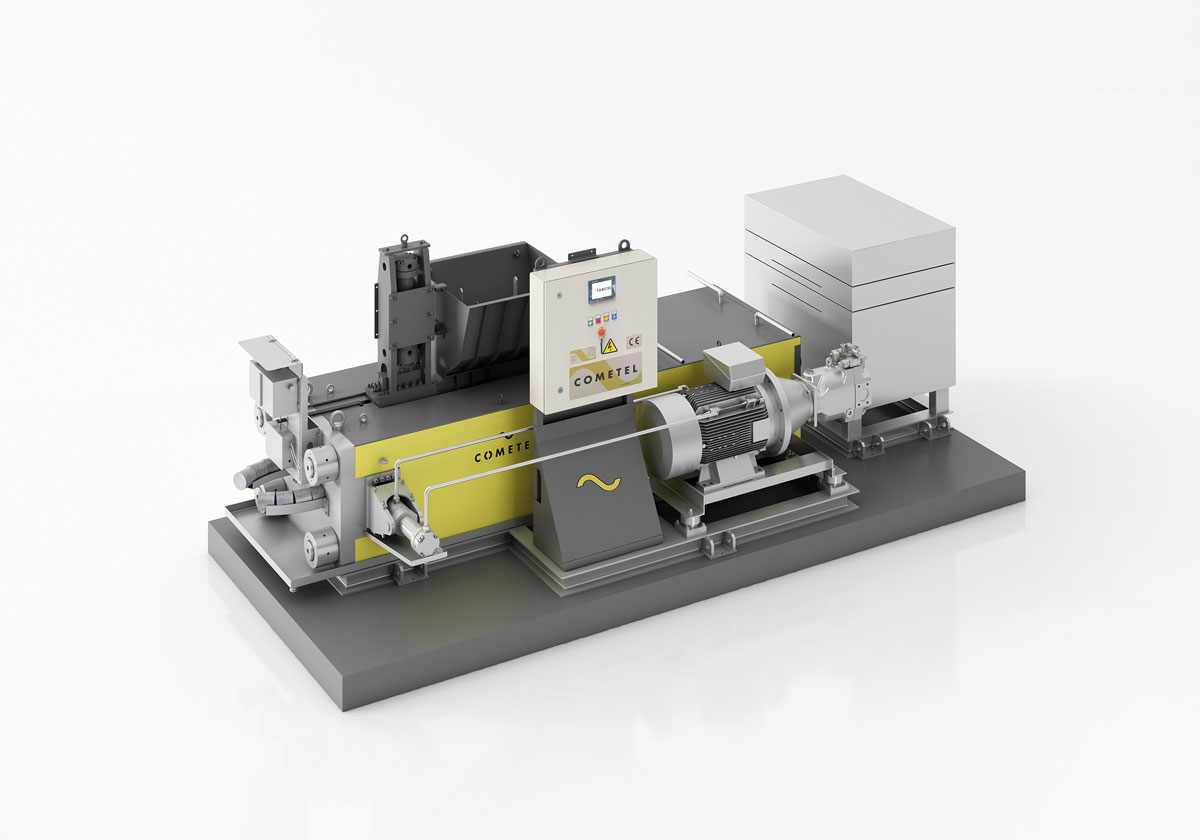

      BRIQUETTING MACHINES

      The function of the briquetting machine is to compact the loose metal chips to form briquettes, reducing the volume and separating during this process the cutting fluids that can be recovered for later reuse in machining.

      METAL CHIP BRIQUETTING MACHINE
      Model Pressure Power Briquette production/min Briquette size Plant layout
      C-2000-BRIQ +1.500kg/cm2 30kW 4-6u/min 125mm x 60mm 3.500 x 1.800 x 2.100mm
      C-4000-BRIQ +4.000kg/cm2 75kW 3-4u/min Ø100mm 5.00 x 2.000 x 1.800mm
      C-2000-BRIQ
      Production (kg/h) Density (kg/dm3)
      Aluminium 250-500 2-2,3
      Steel 250-400 5-5,5
      Cast iron 250-400 5-5,5
      Copper-Bronze 250-500 5-6,5
      C-4000-BRIQ
      Production (kg/h) Density (kg/dm3)
      Aluminium 300-600 2,3-2,6
      Steel 800-1.000 5-5,5
      Cast iron 800-1.000 5,2-5,8
      Copper-Bronze 800-1.200 5-6,5
